Auto Load Cartoner

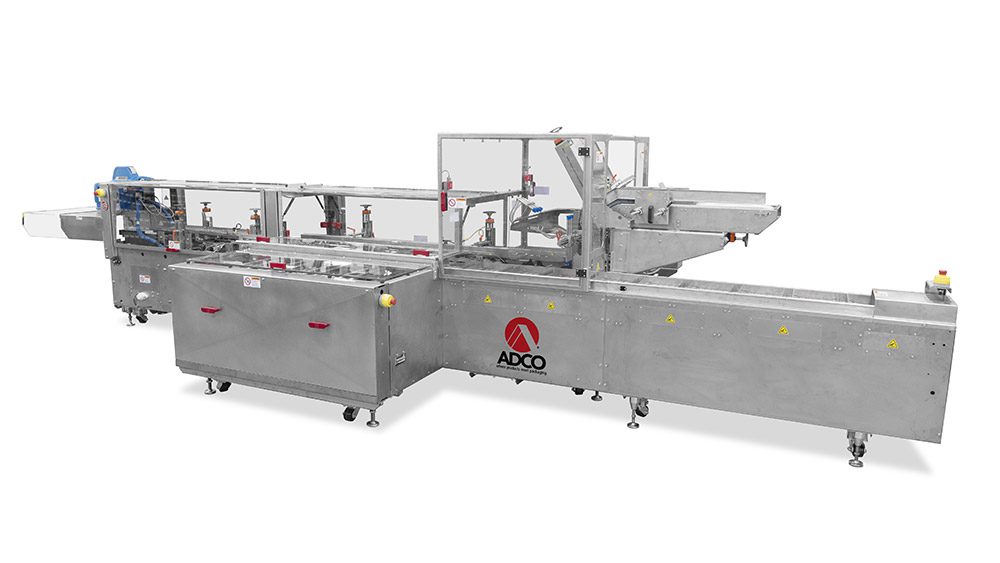

Auto Load Cartoner - 15DBC105

ADCO’s popular 15DBC105 cartoner has the flexibility, reliability, and functionality that today’s packager’s need.

Capable of erecting, loading and sealing a wide range of carton sizes and styles at speeds up to 120 cartons per minute, the value packed 15DBC105 auto load cartoner is ideal for the most demanding and cost-conscious production environments. Along with its continuous motion design, the 15DBC105 includes a fully automatic barrel cam product inserter with an adjustable overload retract system. Smooth, efficient, and reliable operation with minimal downtime and maintenance requirements are just a few of the key attributes that have made the 15DBC105 such a popular choice. With simple operation and excellent ergonomics, the 15DBC105 really delivers. Like all ADCO machines, the 15DBC105 is available in both standard and washdown configurations.

  • Stainless steel construction
  • Barrel cam inserter with adjustable overload sensor-protected retract system
  • No product/no carton, no carton/no load sensing
  • 4’ horizontal powered easy-to-load carton magazine
  • 2-head rotary carton feeder with orbital option
  • Product infeed conveyor with adjustable buckets
  • Capable of closing either glued or tablock tuck style cartons
  • Nordson® ProBlue FLEX hot melt glue system (when glue is specified)
  • Allen-Bradley® control package with touch screen HMI
  • Category 3 safety system with a fully-interlocked barrier guard package
  • Many options available upon request
  • Stainless steel construction improves cleanability
  • Two-head rotary carton feeder with orbital pre-break option ensures smooth, efficient operation
  • Fast, easy changeover with screw adjustments maximize productivity
  • Large carton size range with oversizing options protects your investment as products change
  • Adjustable infeed and transfer conveyor pockets provide flexibility
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Flow-wrapped products
  • Bag-in-box
  • Frozen foods
  • 12" Pizzas
  • Baked goods
  • Snack foods
  • Dairy
  • Frozen novelties
  • Personal care
  • Consumer products
  • Beverage
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 1 9 25 229
Width of Opening .75 3 20 75
Carton Depth 4 12 100 305
Electrical 230/460 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption 10 CFM @ 95 PSI
  • Washdown
  • Extended length infeed conveyor
  • Extended length carton magazine
  • Orbital feeder with pre-break
  • Glue or tablock tuck style closure
  • Nordson MOD melt on demand hotmelt glue system
  • Static overhead confining system
  • Powered side discharge belts
  • Open flap detect & reject system
  • Marking and coding systems
  • Extensive size range extending options
  • Integrate with an ADCO product indexer
  • PLC & HMI upgrades
