Auto Load Cartoner

Auto Load Cartoner - JET-BC-120

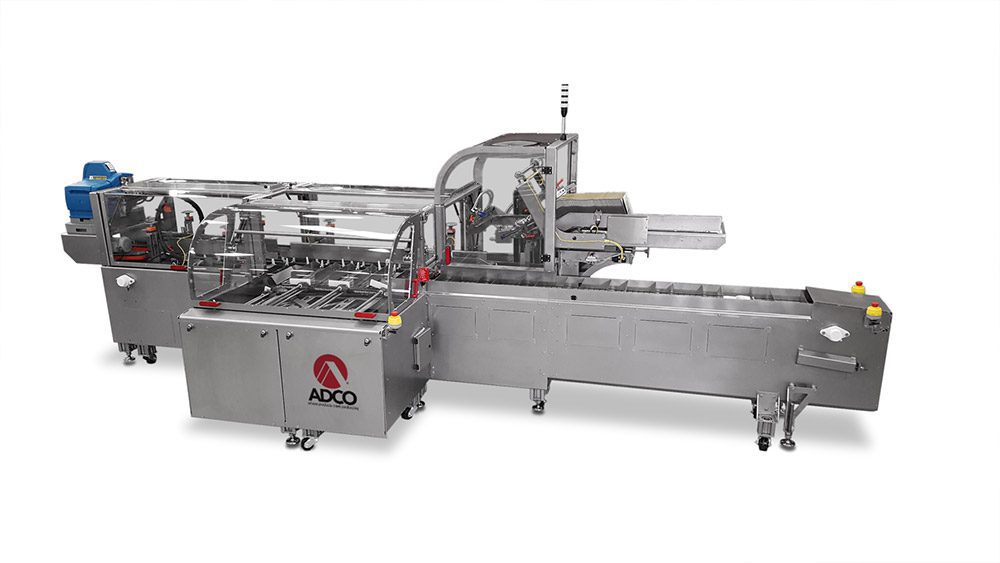

The ADCO JET-BC-120 horizontal end load cartoner packs industry leading performance and features into a small footprint.

Capable of erecting, loading and sealing a wide range of end load carton sizes and styles at speeds up to 120 cartons per minute, the JET-BC-120 is ideal for the most demanding and space conscious production environments. Along with its ergonomic operator features and its continuous motion design, the JET-BC-120 includes a fully automatic barrel cam product inserter with an adjustable overload retract system. Smooth, efficient and reliable operation in an extremely small footprint make the JET-BC-120 a great choice for packagers looking to maximize their productivity, while using less space. Like all ADCO automatic cartoning machines, the JET-BC-120 is constructed out of stainless steel and is available in both standard and washdown configurations.

  • Stainless steel construction
  • Compact frame with leveling feet and casters
  • Barrel cam inserter with adjustable overload sensor-protected retract system
  • 4’ horizontal powered easy-to-load carton magazine
  • 2-head rotary carton feeder with orbital pre-break option
  • Capable of closing either glued or tablock tuck style cartons
  • Nordson® ProBlue FLEX hot melt glue system
  • Allen-Bradley® control package with touch screen HMI
  • Category 3 safety system with a fully-interlocked barrier guard package
  • Many options available upon request
  • Stainless steel construction improves cleanability and reduces corrosion
  • 2-head rotary carton feeder with orbital pre-break option ensures smooth, efficient operation
  • Fast, easy changeover with screw adjustments maximizes productivity
  • Compact frame with leveling feet and casters saves space and maximizes portability
  • Large carton size range with oversizing options protects your investment as products change
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Flow-wrapped products
  • Bag-in-box
  • Frozen food
  • Ready meals
  • Pharmaceuticals
  • Dairy products
  • Frozen novelties
  • Personal care
  • Consumer goods
  • Beverage
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 1 9 25 229
Width of Opening 1 4 25 102
Carton Depth 4 12 102 305
Electrical 230 VAC, 3-Phase with ground (PE), 60 Hz
Air Consumption 8-9 CFM @ 95 PSI (Venturi) 2-3 CFM @ 90 PSI (Pump)
  • Washdown construction
  • Static and traveling overhead confining systems
  • Glue or tablock tuck style closure
  • Nordson MOD melt on demand hotmelt glue system
  • Extended length infeed conveyor
  • Extended length carton magazine
  • Quick change sliding product infeed buckets
  • Powered side discharge belts
  • Open flap detect & reject
  • Marking and coding systems
  • Integrate with an ADCO product indexer
  • PLC & HMI upgrades
