Hand Load Cartoner

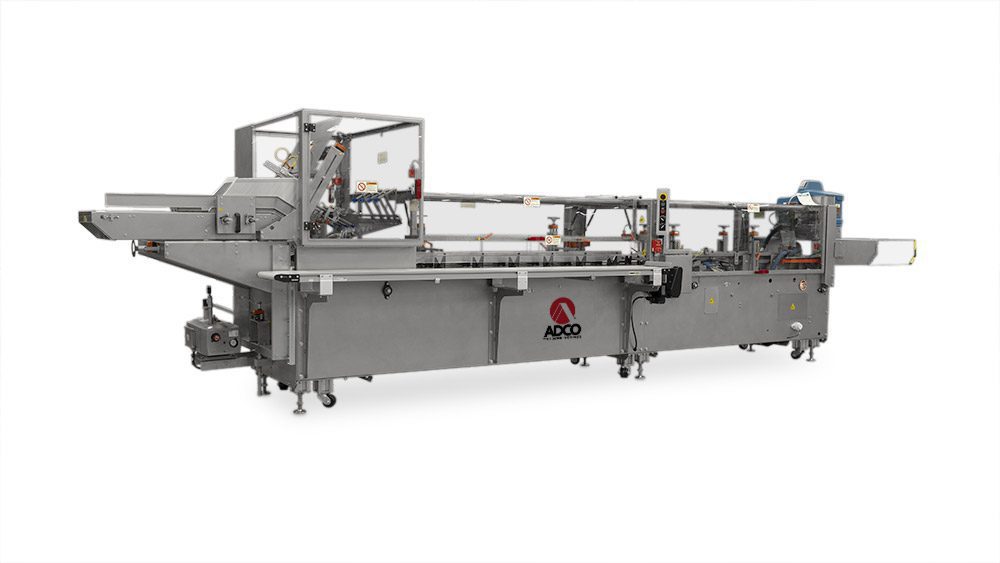

Hand Load Cartoner - 15D105

There is a reason the 15D105 is one of the most recognized cartoners among packagers.

Capable of running a wide range of carton sizes and styles at speeds up to 125 cartons per minute, the 15D105 hand load cartoner is ideal for the most demanding and cost-conscious production environments. The 15D105 features continuous motion design, delivering smooth, efficient, and reliable operation all day, every day. Designed for  conversion to a fully automatic barrel cam machine, you can rest assured that as your production needs change, the 15D105 can change with you. Fast changeover, simple operation, and excellent ergonomics are all hallmarks of the 15D105 and make this machine an incredibly popular choice. Like all ADCO machines, the 15D105 is constructed in stainless steel and is available in both standard and washdown configurations.

  • Stainless steel construction
  • Compact frame with leveling feet and casters
  • 4’ horizontal powered easy-to-load carton magazine
  • 2-head rotary carton feeder with orbital pre-break option
  • Ergonomically-designed 6’ dual station product load table
  • Capable of closing either glued or tablock tuck style cartons
  • Nordson® ProBlue FLEX hot melt glue system
  • Relay logic controls, PLC upgrade available
  • Category 3 safety system with a fully-interlocked barrier guard package
  • Many options available upon request
  • Stainless steel construction improves cleanability and eliminates corrosion
  • 2-head rotary carton feeder ensures smooth, efficient operation, orbital pre-break carton feeder is also available
  • Fast, easy changeover with screw adjustments maximize productivity
  • Compact frame with leveling feet and casters saves space and maximizes portability
  • Large carton size range with oversizing options protects your investment as products change
  • Ergonomically-designed product load table minimizes fatigue and maximizes productivity
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Flow-wrapped products
  • Bag-in-box
  • Frozen food
  • 12" Pizzas
  • Ready meals
  • Pharmaceuticals
  • Dairy products
  • Frozen novelties
  • Personal care
  • Consumer goods
  • Beverage
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 1.5 9 25 229
Width of Opening .75 4 20 100
Carton Depth 4 12 100 305
Electrical 230 VAC, 3-Phase with ground (PE), 60 Hz, 25A
Air Consumption 10 CFM @ 95 PSI
  • Orbital feeder with pre-break
  • Washdown construction
  • Glue or tablock tuck style closure
  • 10' bolt on conveyor
  • Marking and coding systems
  • 24" Additional hand load section
  • 72" Powered magazine
  • Powered side discharge belts
  • Extensive size range extending options
  • Available auto-load barrel cam conversion
