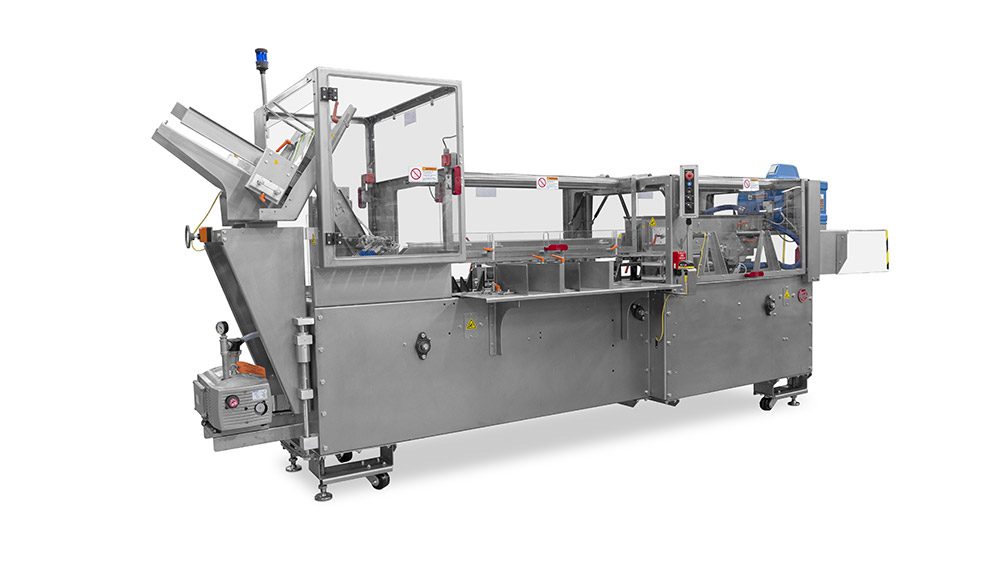

15DZ

Hand Load Cartoner

Featuring a smooth and efficient single-head rotary carton feed system, the 15DZ delivers class-leading carton erecting performance in a compact and economical package.

Capable of running a wide range of carton sizes and styles at speeds up to 60 cycles per minute, the affordable 15DZ is ideal for the most demanding and cost-conscious production environments. Simple operation, ergonomic design, and the optional ability to switch between Intermittent or Continuous Motion Mode really set this machine apart from the crowd. Like all ADCO machines, the 15DZ is constructed in stainless steel and is available in both standard and washdown configurations.

Request a Quote

Features

Stainless steel construction
Compact frame with leveling feet and casters
Single-head rotary carton feeder
Ergonomically-designed product load table
Capable of closing either glued or tablock tuck-style cartons
Nordson® ProBlue FLEX hot melt glue system
Simple relay logic controls
Category 3 safety system with a fully-interlocked barrier guard package
Many options available upon request

Benefits

Stainless steel construction improves cleanability and eliminates corrosion
Single head rotary carton feeder ensures smooth, efficient operation
Horizontal flap tucker takes the challenge out of difficult bag-in-box applications
Large carton size range protects your investment as products change
Ergonomically-designed product load table minimizes fatigue and maximizes productivity
Advanced guard design keeps operators safe and maximizes maintenance access

Applications

Flow-wrapped products
Bag-in-box
Frozen foods
Baked goods
Snack foods
Dairy
Personal care
Consumer goods
Beverage

Specs

Carton Dimensions Carton Open Carton Horizontal

Carton Size Range
Dimensions	Min(in)	Max(in)	Min(mm)	Max(mm)
Length of Opening	1	9	25	230
Width of Opening	1	4	25	100
Carton Depth	4	12	100	305

Utilities
Electrical	230 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption	10 CFM @ 95 PSI

Options

Washdown construction
Glue or tablock tuck style closure
Marking and coding systems
10′ bolt on infeed conveyor
Powered magazine
Switchable intermittent to continuous motion feed

Contact Us for a Quote on this Machine
