Hand Load Cartoner

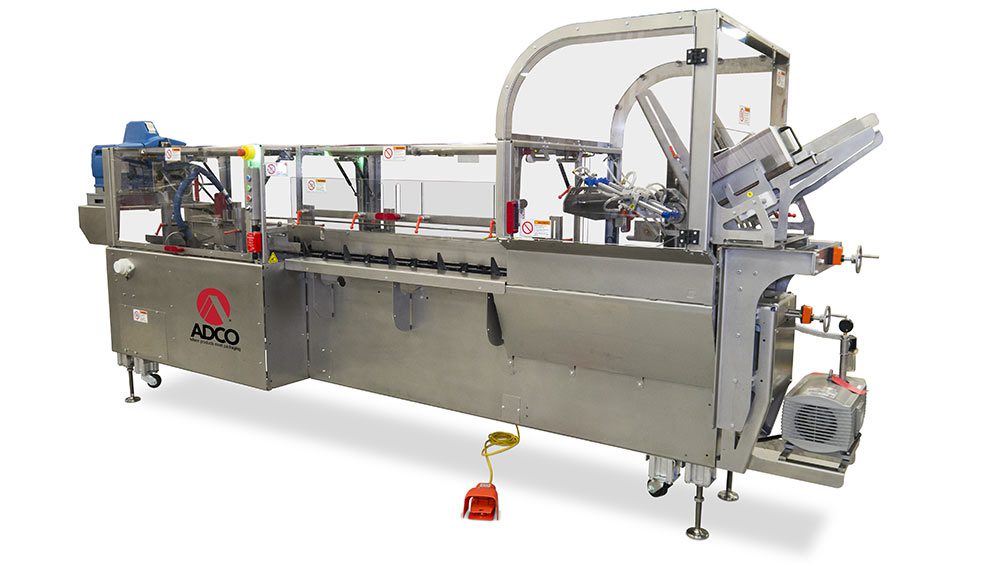

Hand Load Cartoner - JET-60

Featuring a smooth and efficient double-head rotary carton feed system with optional orbital feed and pre-break, the JET-60 delivers class-leading carton erecting performance in a compact and economical package.

Capable of erecting and closing a wide range of carton sizes at speeds up to 60 cycles per minute, the JET-60 is ideal for the most demanding production environments. Fast changeover, simple operation, and ergonomic design, along with the ability to easily add a barrel cam auto-load system, really set this machine apart from the crowd. Like all ADCO machines, the JET-60 hand load cartoner is constructed in stainless steel and is available in standard or washdown configurations.

  • Stainless steel construction, welded frame
  • Compact frame with leveling feet and casters
  • Ergonomically-designed product load table
  • Capable of closing either glued or tablock tuck style cartons
  • Nordson® ProBlue FLEX hot melt glue system
  • Allen-Bradley® control package
  • Category 3 safety system with a fully-interlocked barrier guard package
  • Optional barrel cam auto-load conversion kit
  • Many options available upon request
  • Stainless steel construction improves cleanability and reduces corrosion
  • Rotary carton feeder ensures smooth, efficient operation
  • Optional orbital carton feeder with vacuum pre-break will open the most challenging cartons
  • Horizontal flap tucker takes the challenge out of difficult bag-in-box applications
  • Large carton size range protects your investment as products change
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Optional barrel cam auto-load conversion kit makes it easy to convert from manual to automatic loading
  • Flow-wrapped products
  • Bag-in-box
  • Frozen foods
  • Baked goods
  • Snack foods
  • Dairy products
  • Frozen novelties
  • Personal care
  • Consumer goods
  • Beverage
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 1 9 25 230
Width of Opening 1 4 25 100
Carton Depth 4 12 100 305
Electrical 230/460 VAC, 3-Phase with ground (PE), 60 Hz
Air Consumption 10 CFM @ 95 PSI
  • Available auto-load barrel cam conversion
  • Orbital feeder with pre-break
  • Washdown construction
  • Glue or tablock tuck style closure
  • Marking and coding systems
  • 10' bolt on infeed conveyor
  • Powered magazine
  • Switchable intermittent to continuous motion feed
  • Powered side discharge belts
