Intermittent Motion Auto Load Cartoner

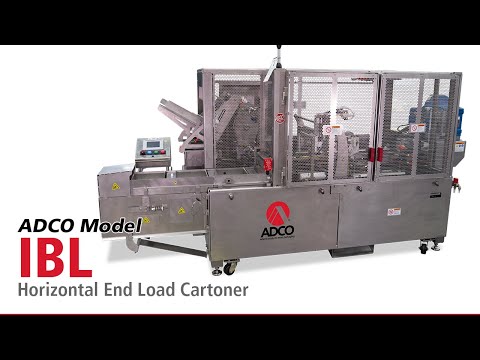

Intermittent Motion Auto Load Cartoner - 14IBL

The versatile ADCO IBL End Load Cartoner is the answer for difficult-to-handle products that run best with intermittent motion.

The compact footprint, flexible design, and affordable price of the IBL make it an ideal solution for low speed applications. The reliable and efficient IBL utilizes a multi-axis servo and air actuated drive system, simplifying the construction and ensuring precision control. A hallmark of the IBL, like many of ADCO’s machines, is its extreme flexibility and configurability. The IBL can be optionally fitted with a variety of different infeed systems and various styles of carton and product feed systems. Like all ADCO machines, the IBL is available in both standard and washdown configurations.

  • Stainless steel construction
  • Intermittent motion, multi-axis servo drive system
  • Compact frame with leveling feet and casters
  • Fast changeover with screw shafts and handles
  • 4’ horizontal powered easy-to-load carton magazine
  • Operates at speeds up to 35 cartons per minute
  • Capable of closing either glued or tablock tuck style cartons
  • Nordson® ProBlue FLEX hot melt glue system
  • Allen-Bradley® control package with touch screen HMI interface
  • PackML programming
  • Category 3 safety system with a fully-interlocked barrier guard package
  • Many options available upon request
  • Stainless steel construction improves cleanability and eliminates corrosion
  • Intermittent-motion design improves handling of delicate products reduces footprint
  • Large carton size range with oversizing options protects your investment as products change
  • Flexible and adaptable design improves usability and protects your investment
  • Fast, easy changeover with screw shafts and handles on adjustments reduces downtime
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Flow-wrapped products
  • Bag-in-box
  • Frozen foods
  • Baked goods
  • Snack foods
  • Dairy
  • Frozen novelties
  • Personal care
  • Consumer goods
  • Beverage
  • Pharmaceutical
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 1 9.5 25 240
Width of Opening .75 4 20 100
Carton Depth 4 12 100 305
Electrical 230 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption 2-3 CFM @ 65-70 PSI
  • Washdown construction
  • Orbital feeder with pre-break
  • Glue or tablock tuck style closure
  • Nordson MOD melt on demand hotmelt glue system
  • Actuated static load area confiner
  • Extended length infeed conveyor
  • Quick change sliding product infeed buckets
  • Open flap detect & reject system
  • Extensive size range extending options
  • Extended length carton magazine
  • Integrate with an ADCO product indexer
  • PLC & HMI upgrades
  • Marking and coding systems
