Servo Auto Load Cartoner

Servo Auto Loader Cartoner - ConCENTRiX SDBC

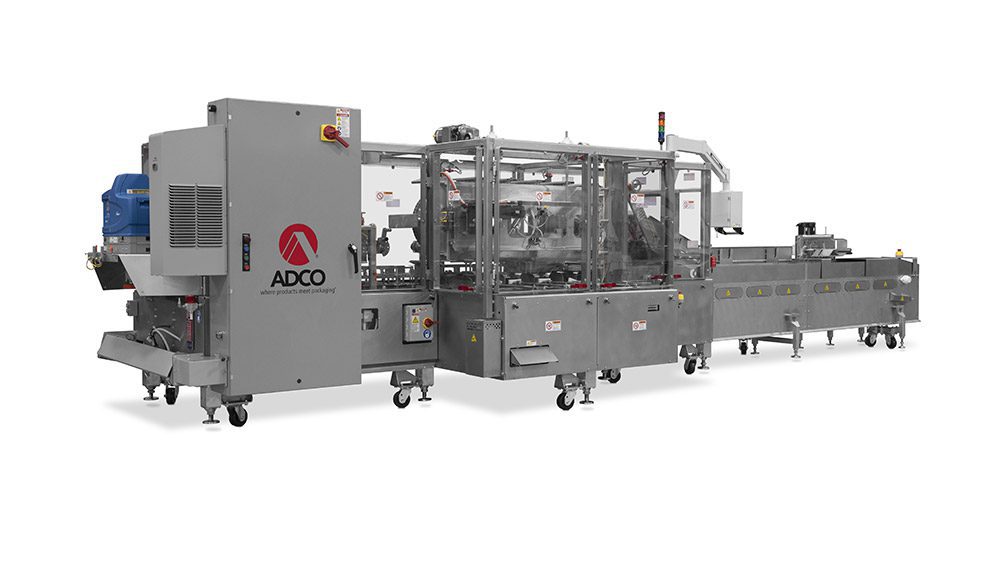

The ADCO ConCENTRiX® SDBC Horizontal End Load Cartoner is sure to please even the most discerning packaging machinery buyer.

Our designers have reimagined everything to bring you a cartoner like none other; this cartoning machine is highly sanitary, fast, efficient, reliable, and best of all, affordable. Featuring centerline design with laser-etched scales and dial indicators, the ConCENTRiX® can be configured to erect, load, and seal a wide range of carton sizes and styles at speeds up to 400 cartons per minute, making it ideal for the most demanding production environments. Also available on the ConCENTRiX® is ADCO’s new, fresh, and intuitive InterACT® HMI system. This brilliant new interface is boldly brought to life with up to a 12" touchscreen, supplied by Allen-Bradley®. Like all ADCO machines, the ConCENTRiX® automatic carton erector is constructed in stainless steel and is available in both standard and washdown configurations. We're creating a new standard in cartoning technology.

  • Stainless steel construction with sanitary frame design
  • Orbital carton feeder with pre-break
  • High capacity, ergonomic low-load carton magazine
  • Barrel cam inserter with adjustable overload sensor-protected retract system
  • No product/no carton, no carton/no load sensing
  • Product infeed conveyor with adjustable buckets, fixed size sliding buckets available
  • Capable of closing either glued or tablock tuck style cartons
  • Nordson® ProBlue FLEX hot melt glue system
  • Powered side discharge belts
  • Allen-Bradley® PLC control system with touch screen HMI
  • PackML Programming
  • Category 3 safety system with a fully-interlocked barrier guard package
  • Many options available upon request
  • Sanitary design maximizes cleanability and machine access
  • Centerline design with laser etched scales and dial indicators reduces changeover time and enhances repeatability
  • Flexible and adaptable design protects your investment as products change
  • Orbital carton feeder with pre-break erects the most challenging cartons
  • Easy to load high-capacity magazine reduces operator fatigue and increases run time
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Flow-wrapped products
  • Bag-in-box
  • Frozen foods
  • 12" pizzas
  • Baked goods
  • Snack foods
  • Dairy
  • Frozen novelties
  • Personal care
  • Consumer goods
  • Pharmaceutical
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 1.5 12.5 40 240
Width of Opening .75 6 20 100
Carton Depth 4 13 100 330
Electrical 230/460 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption 2-3 CFM @80 PSI
  • Washdown construction
  • ADCO InterACT HMI with 12" touchscreen
  • Nordson MOD melt on demand hotmelt glue system
  • Static and traveling overhead confining systems
  • Glue or tablock tuck style closure
  • Extended length infeed conveyor
  • Quick change sliding product infeed buckets
  • Extensive size range extending options
  • Open flap detect & reject system
  • Marking and coding systems
  • Integrate with an ADCO product indexer
  • PLC & HMI upgrades
