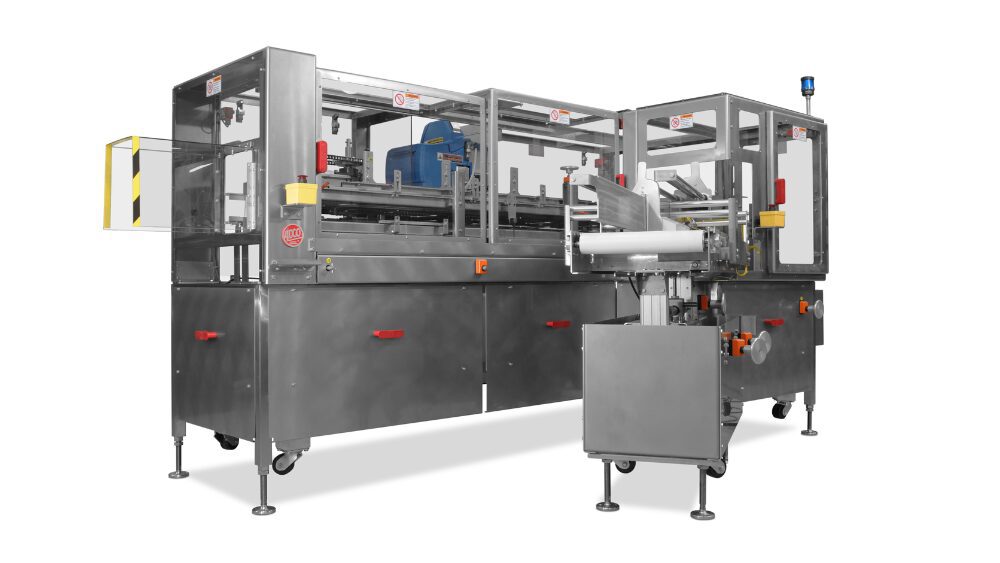

VBS

Vertical Bottom Sealer

The VBS Vertical Bottom Sealer erects and seals the bottom flaps of cartons so they can be packed downstream.

The VBS is a continuous motion machine designed to run seal end cartons vertically so that the opening is facing up. The VBS is often used in conjunction with downstream liquid bag or scale fillers and variety pack manually loaded products. The cartons are erected by an orbital pre-break feeder from the horizontal powered carton magazine. Once the cartons are erected, the bottom flaps are closed and sealed. The cartons are then discharged onto a conveyor where they are filled downstream. Like all ADCO machines, the VBS is constructed out of stainless steel and is available in both, standard and washdown configurations.

Request a Quote

Features

Stainless steel construction
Compact frame with leveling feet and casters
High capacity, easy-to-load carton magazine
Adjustable carton flight lugs
Nordson® ProBlue FLEX hot melt glue system
Allen-Bradley® PLC control package with touch screen HMI interface
Category 3 safety system with fully-interlocked barrier guard package

Benefits

Stainless steel construction
Often used in conjunction with downstream liquid bag or scale fillers and variety pack manually loaded products
Large carton size range protects your investment as products change
Fast, easy changeover with screw adjustments maximize productivity
Orbital carton feeder with pre-break erects the most challenging cartons
Advanced guard design keeps operators safe and maximizes maintenance access

Applications

Refrigerated & Frozen foods
Bakery & Snack foods
Confections
Nutritional products
Personal care
Consumer products
Pharmaceutical
Soap & Detergents

Specs

Carton Dimensions Small Carton Open Vertical

Carton Size Range
Dimensions	Min(in)	Max(in)	Min(mm)	Max(mm)
Length of Opening	2.0	9.0	50	229
Width of Opening	1.0	4.0	25	100
Carton Depth	4.0	12.0	100	305

Utilities
Electrical	230/460 VAC, 3-Phase with ground (PE), 60 Hz
Air Consumption	2-3 CFM @ 90 PSI (Pump)

Options

Washdown construction
Tablock tuck or glue style closure
Extended length carton magazine
Low carton indicator
Marking and coding systems
PLC & HMI upgrades
Integrate with an ADCO or 3rd party supplied product loading system
Integrate with an ADCO supplied 18TS carton closer
