VHL

Hand-Load Vertical Cartoner

Vertical End Loader Cartoner - VHL

The VHL Vertical Hand-load cartoning machine is the answer for hard-to-load products.

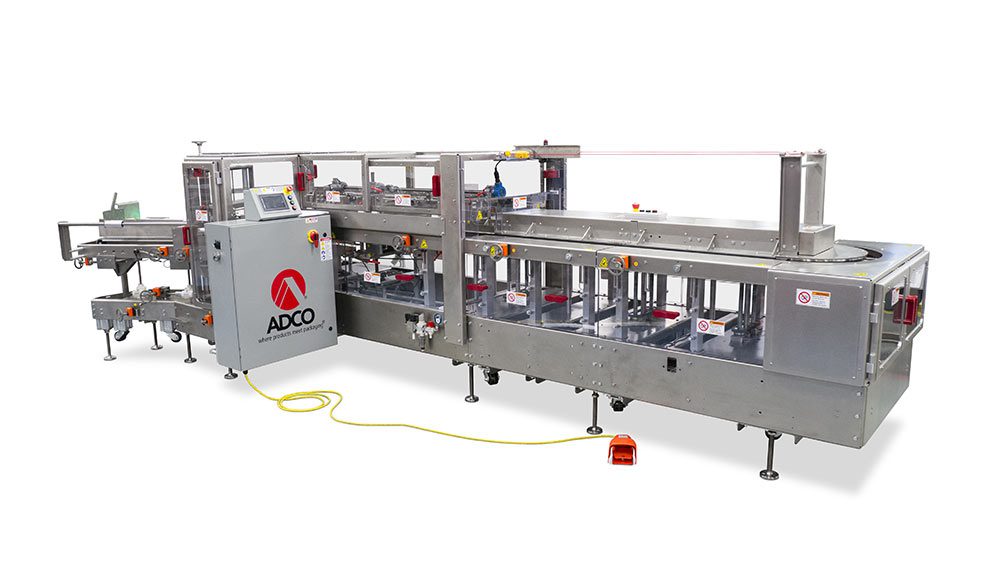

The VHL is a continuous motion machine designed to run seal end cartons vertically so that the opening is facing up. The cartons are erected by an orbital pre-break feeder from the horizontal powered carton magazine. Once the cartons are erected, the bottom flaps are closed and sealed. The cartons then pass by the horseshoe-shaped load table where multiple operators drop the product into the carton. The top flaps are then closed and sealed with hot melt adhesive. Like all ADCO machines, the VHL is constructed out of stainless steel and is available in both, standard and washdown configurations.

  • Stainless steel construction
  • Compact frame with leveling feet and casters
  • High capacity, easy-to-load carton magazine
  • Uses gravity to help operators load product faster & more efficiently
  • Adjustable carton flight lugs, fixed size 3-sided buckets available
  • Horseshoe shaped product load area
  • Nordson® ProBlue FLEX hot melt glue system
  • Allen-Bradley® PLC control package with touch screen HMI interface
  • Category 3 safety system with fully-interlocked barrier guard package
  • Many product handling and infeed options available
  • Stainless steel construction
  • Uses gravity to help operators load product faster & more efficiently
  • Large carton size range protects your investment as products change
  • Ergonomically-designed product load table minimizes fatigue and maximizes productivity
  • Fast, easy changeover with screw adjustments maximize productivity
  • Orbital carton feeder with pre-break erects the most challenging cartons
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Refrigerated & Frozen foods
  • Bakery & Snack foods
  • Confections
  • Nutritional products
  • Personal care
  • Consumer products
  • Pharmaceutical
  • Soap & Detergents
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 2 9.5 50 240
Width of Opening .75 3 20 75
Carton Depth 4 10 100 255
Utilities
Electrical 230/460 VAC, 3-Phase with ground (PE), 60 Hz
Air Consumption 2-3 CFM @ 90 PSI (Pump)
  • Washdown construction
  • Tablock tuck or glue style closure
  • Extended length carton magazine
  • Low carton indicator
  • Extended length load area
  • Quick-change fixed size 3-sided carton buckets
  • Powered carton discharge
  • Marking and coding systems
  • Automatic product loading (scale, volumetric, robotic)
  • PLC & HMI upgrades
  • Mechanical or servo powered drive
