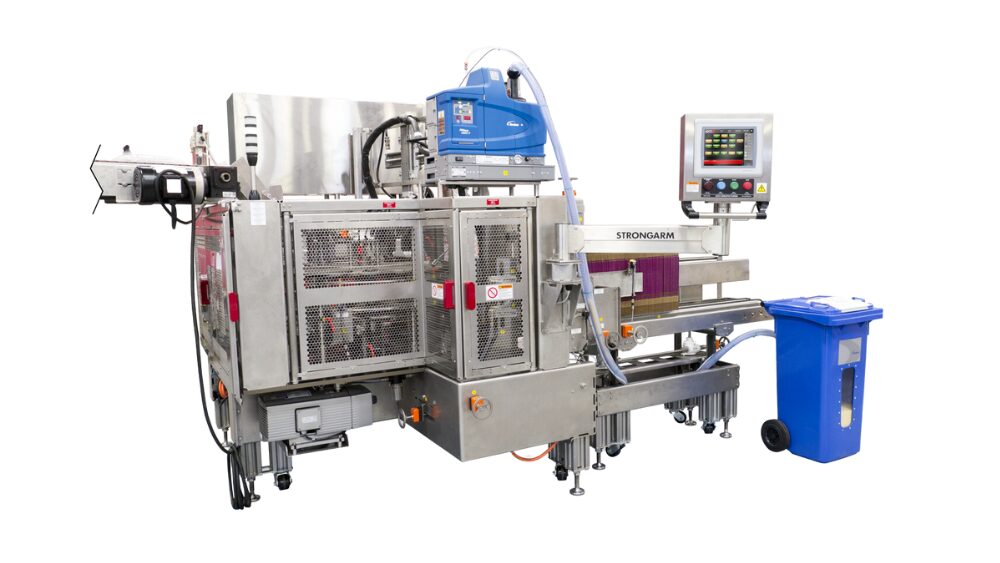

VRC

Vertical Rotary Cartoner

Featuring a 10-pocket starwheel, the ADCO VRC was designed to erect, load, and seal medium to large size vertical end load cartons.

The VRC is ideal for space-conscious facilities that require a vertical load cartoner. The VRC uses a rotary starwheel with “no-tool” changeout pockets to quickly changeover. The VRC can be configured to accept product from liquid bag fillers, scales, or from a robotic handling system. With its space-saving footprint and flexible design, the Compact 4 is ideal for pharmaceutical and cosmetic packagers. Like all ADCO machines, the Compact 4 is constructed in stainless steel.

Request a Quote

Features

Stainless steel construction
Compact design with casters and adjustable leveling feet
Starwheel with quick changeout size pockets
Orbital pre-break carton feeder
72″ long horizontal powered carton magazine
Uses gravity to help load product faster & more efficiently
Allen-Bradley® PLC control package
Nordson® ProBlue FLEX hot melt glue system (when glue is specified)
Quick adjust levers and scales on all adjustments
Many options available upon request

Benefits

Stainless steel construction improves cleanability and eliminates corrosion
Uses gravity to help load product faster & more efficiently
Ideal for filling large cartons with product that is best loaded vertically
Flexible design minimizes changeover time and protects investment as products change

Applications

Pharmaceutical
Cosmetics
Household products
Novelties
Beverage
Candy and Confectionery

Specs

Carton Dimensions Small Carton Open Vertical

Carton Size Range
Dimensions	Min(in)	Max(in)	Min(mm)	Max(mm)
Length of Opening	3.0	8.0	76	203
Width of Opening	2.0	5.0	50	127
Carton Depth	5.0	12.0	127	305

Utilities
Electrical	230 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption	8-9 CFM @ 65-70 PSI

Options

Washdown construction
Tablock tuck or glue style closure
Marking and coding systems
Nordson MOD melt on demand hotmelt glue system
Low carton indicator
Integrate with an ADCO or 3rd party product loader
PLC & HMI upgrades
