EnCompass® WACP

Wrap Around Case Packer

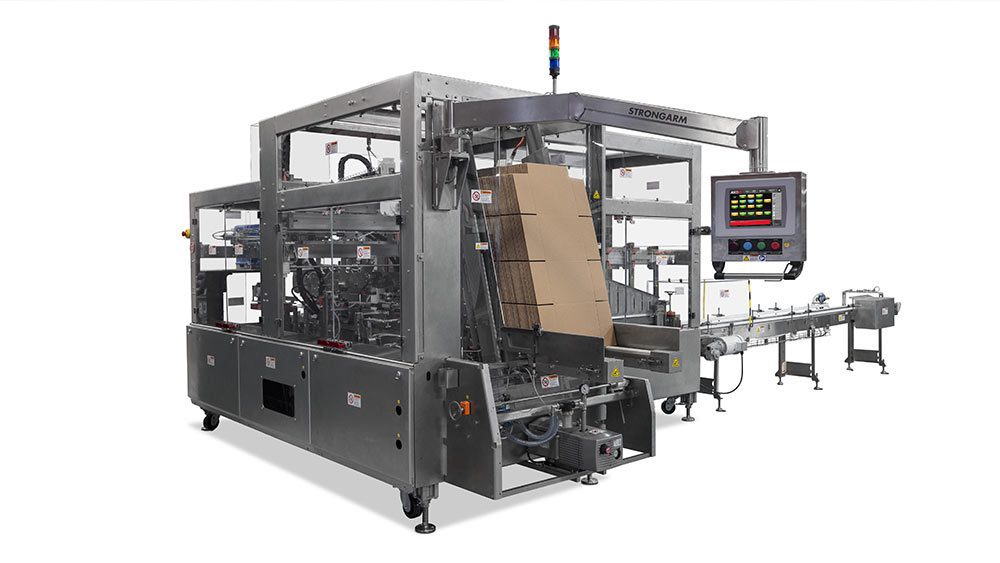

Wrap Around Case Packer - EnCompass WACP

When only the best will do, look no further than the ADCO EnCompass® WACP wrap around case packer.

With its industry leading performance, modern design, and compact footprint, the WACP is ideal for the most demanding and space-conscious production environments. Featuring a fully-welded, sanitary, sheet metal frame, ergonomic magazine load height, dual-shaft design for ease of set-up, along with standard servo controls, the WACP handles a wide range of wrap around case sizes with maximum precision and reliability at speeds up to 20 cases per minute. Like all ADCO machines, the EnCompass® WACP is constructed out of stainless steel and is available in both standard and washdown configurations.

  • Stainless steel construction
  • Compact frame with leveling feet and casters
  • High capacity, easy-to-load case magazine
  • Servo motion controls throughout
  • Modern and intuitive operator interface
  • Nordson® ProBlue hot melt glue system
  • Allen-Bradley® PLC control package with touch screen HMI interface
  • Category 3 safety system with fully-interlocked barrier guard package
  • Many product handling and infeed options available
  • Wrap around cases provide up to 30% material savings over traditional cases
  • Stainless steel construction with fully-welded sheet metal frame provides maximum strength, plus improved sanitation and cleanability over traditional designs
  • Fast, easy changeover with dual shafts and motorized overheads along with servo controls maximizes reliability and productivity
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Refrigerated & Frozen foods
  • Bakery & Snack foods
  • Confections
  • Nutritional products
  • Personal care
  • Pharmaceutical
  • Soap & Detergents
Case Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 4 14 102 355
Width of Opening 3 14 76 355
Carton Opening 7.5 22 190 559
Electrical 230/460 VAC, 3-Phase with ground (PE), 60 Hz
Air Consumption 3 CFM @ 90 PSI
  • Washdown construction
  • Multiple product infeed and loading options available depending on the product  type & supply and pack pattern
  • Nordson MOD melt on demand hotmelt glue system
  • Extended length infeed conveyor
  • Extensive size range extending options
  • Extended length case magazine
  • Integrate with an upstream ADCO cartoner
  • PLC & HMI upgrades
