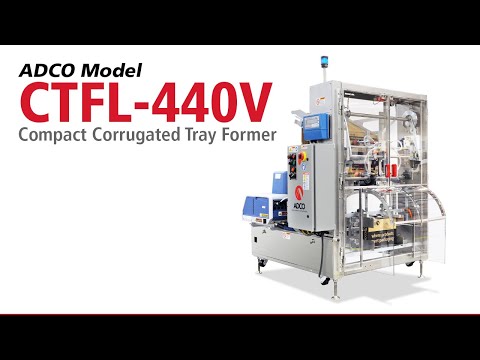

CTFL 440V

Compact Corrugated Tray Former

The CTFL 440V is an amazing little tray former ideal for packagers that are looking for a lower-cost alternative to use in lower speed applications.

Born from ADCO’s workhorse tray former, the CTF 470V, this amazing little tray former is ideal for packagers that are looking for a lower cost alternative to use in lower speed applications. Just like its big brother and all other ADCO machines, the CTFL features heavy-duty, stainless steel construction and it is ready for the most demanding production environments. With its small footprint, simple operation, and low-cost, the choice is clear; the ADCO CTFL is your next tray former.

Request a Quote

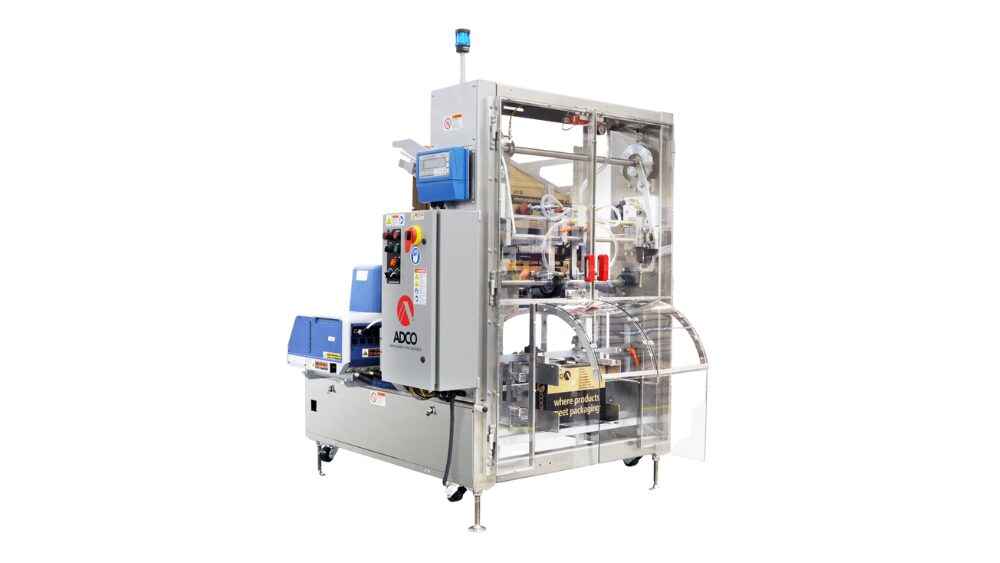

CTFL 440V - Compact Corrugated Tray Former

Features

Stainless steel construction
Mechanically driven forming mandrel with overload protection
Variable speed drive system
30” long inclined gravity magazine with optional 5′ powered magazine
Adjustable mandrel stroke capable of forming 2” to 8” (50mm to 200mm) deep glue or lock trays
Nordson® ProBlue FLEX hot melt glue system with pattern controller
Allen-Bradley® PLC control system
Category 3 safety system with fully interlocked barrier guard package
Many options available upon request

Benefits

Compact footprint saves space and simplifies integration
Mechanical forming section ensures consistent, reliable and simple operation
Flexible design makes tray size and style changes easier and less costly
Quick change option improves productivity and reduces downtime
Stainless steel construction improves cleanability
Advanced guard design keeps operators safe and maximizes maintenance access

Applications

Retail Ready/Display Ready packaging
Beverage
Consumer products
Frozen foods
Meat & Poultry
Refrigerated/Fresh food
Baked goods
Club store packaging

Specs

Small Carton Open Carton Dimensions Medium Carton Open

Carton Size Range
Dimensions	Min(in)	Max(in)	Min(mm)	Max(mm)
A	11.25	36	285	915
B	8.25	25.75	210	655
C	10	26	255	660
D	7	18	180	455
E	2	8	50	200
F	8.5	21	215	535

Utilities
Electrical	230/460 VAC, 3-Phase with ground (PE), 60 Hz
Air Consumption	10 CFM @ 95 PSI

Options

Powered 60″ magazine
Quick change modifications
Angled discharge conveyor
PLC & HMI upgrades
