CTF 470V

Corrugated Tray Former

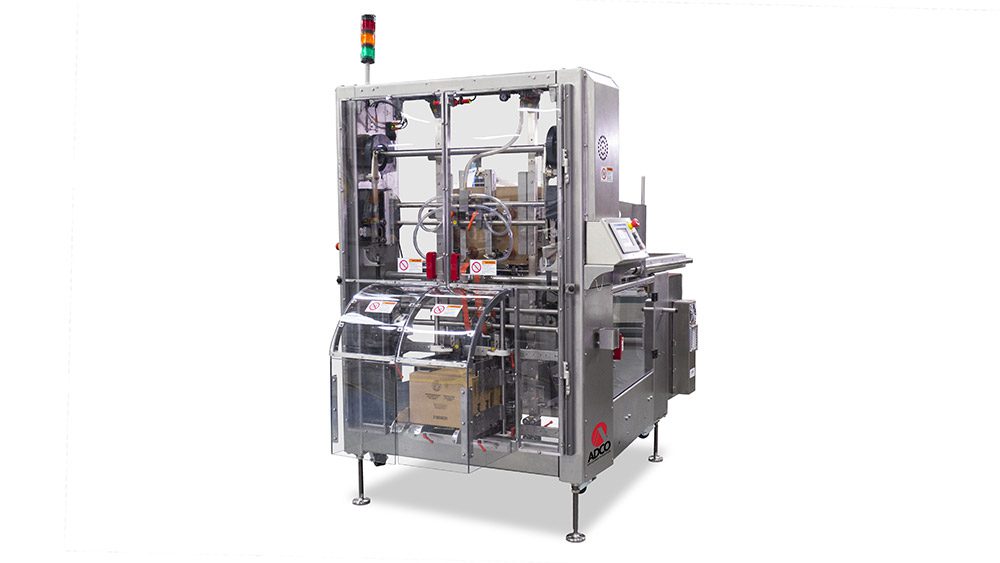

Corrugated Tray Former - CTF 470V

Capable of forming a wide range of sizes and styles of corrugate trays, the ergonomically designed CTF 470V delivers class-leading performance at speeds up to 70 cycles per minute.

Featuring a 5’ powered magazine and available fast “no-tool” changeover, the compact and simple to operate CTF 470V is ideal for the most demanding production environments. The servo powered mandrel allows the stroke travel to be optimized by folding flaps gradually, maximizing compression, and accelerating the return stroke. Like all ADCO machines, the CTF 470V is constructed in stainless steel and is available in both standard and washdown configurations.

  • Stainless steel construction
  • Servo-controlled forming section
  • 60” long horizontal magazine for ergonomic loading of the blanks and consistent pressure whether the hopper is full or empty
  • Servo powered mandrel offers tunable stroke profiles to maximize speed and compression time. Capable of forming 1.5 to 8” (40 to 200mm) deep trays.
  • Nordson® ProBlue FLEX hot melt glue system
  • Allen-Bradley® PLC control system with touch screen HMI
  • Fully-interlocked barrier guard package
  • Many options available upon request
  • Compact footprint saves space and simplifies integration
  • Flexible design makes tray size and style changes easier and less costly
  • Stainless steel construction improves cleanability and eliminates corrosion
  • Easy-to-load, high capacity magazine reduces operator fatigue and increases run time
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Retail Ready/Display Ready packaging
  • Beverage
  • Consumer products
  • Frozen foods
  • Meat & Poultry
  • Refrigerated/Fresh food
  • Club store packaging
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
A 16.25 36 415 915
B 8.25 25.75 210 655
C 15 26 380 660
D 7 18 180 455
E 1.5 8 40 200
Electrical 230/460 VAC, 3-Phase with ground (PE), 60 Hz
Air Consumption 10 CFM @ 95 PSI
  • Washdown construction
  • Fast, no-tool changeover improves productivity and reduces downtime
  • Form glue or fold-over end wall style trays
  • Extended length 120" long blank magazine
  • Nordson MOD melt on demand hotmelt glue system
  • Angled discharge conveyor
  • PLC & HMI upgrades
  • Extensive size range extending options
