CTF 440VX

Large Format Tray Former

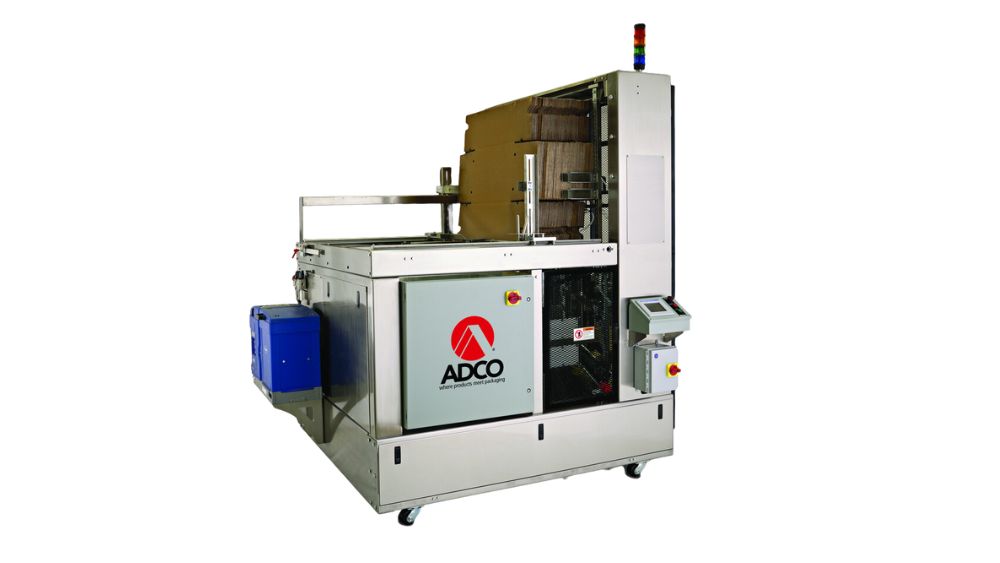

Large Format Tray Former - CTF 440 VX

The ergonomically designed CTF 440VX delivers class-leading performance at speeds up to 40 cycles per minute.

The CTF 440VX is designed to form large, oversized trays that cannot fit on the standard CTF. Featuring a 60" long horizontal powered magazine, available “no-tool” changeover, and a precision servo-controlled forming section, the reliable and simple to operate CTF 440VX is ideal for the most demanding production environments. Like all ADCO machines, the CTF 440VX is constructed in stainless steel and is available in both standard and washdown configurations.

  • Stainless steel construction
  • Mechanically driven forming mandrel with overload protection
  • Variable speed drive system
  • 60” long horizontal magazine for ergonomic loading of the blanks and consistent pressure whether the hopper is full or empty
  • Servo powered mandrel offers tunable stroke profiles to maximize speed and compression time
  • Nordson® ProBlue FLEX hot melt glue system
  • Relay logic with push button controls
  • Fully interlocked barrier guard package
  • Many options available upon request
  • Compact footprint saves space and simplifies integration
  • 60” long horizontal magazine for Ergonomic loading of the blanks and consistent pressure whether the hopper is full or empty
  • Servo powered mandrel offers tunable stroke profiles to maximize speed and compression time
  • Flexible design makes tray size and style changes easier and less costly
  • Quick change option improves productivity and reduces downtime
  • Stainless steel construction improves cleanability
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Retail Ready/Display Ready packaging
  • Beverage
  • Consumer products
  • Frozen foods
  • Meat & Poultry
  • Refrigerated/Fresh food
  • Club store packaging
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
A 14.25 46 360 1165
B 8.25 40 210 1015
C 13 38 330 965
D 7 26 180 660
E 3 12 75 305
F 10 29 255 735
Utilities
Electrical 230/460 VAC, 3-Phase with ground (PE), 60 Hz
Air Consumption 10 CFM @ 95 PSI
  • Washdown construction
  • Fast, no-tool changeover improves productivity and reduces downtime
  • Form glue or fold-over end wall style trays
  • Nordson MOD melt on demand hotmelt glue system
  • Angled discharge conveyor
  • PLC & HMI upgrades
  • Extensive size range extending options
