WM/WS

High Speed Wrap Around Sleever

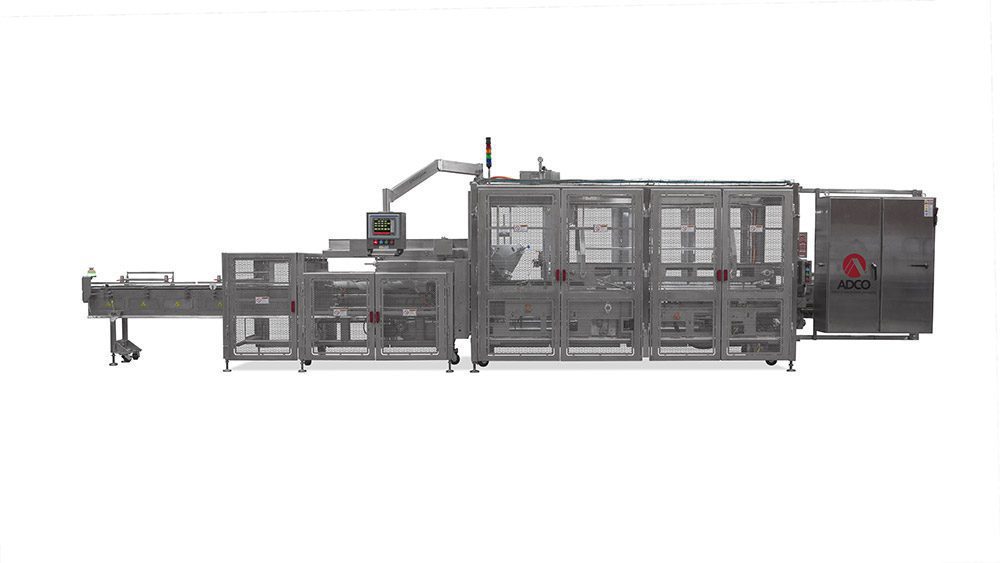

High-Speed Mechanical Sleever - WM

When reliability, flexibility and performance matter, look no further than ADCO’s family of rugged and dependable high-speed sleevers.

Available in both a mechanical version (WM) and a servo version (WS), ADCO’s high-speed sleevers are the right solution for the most demanding production environments. Featuring class-topping speeds of up to 350 sleeves per minute, ADCO sleevers are capable performers with the ability to run a wide range of sleeve sizes and styles including neck-through and gusset sleeves. If you need to run multiple lanes, stack your products in layers or invert the top layer, ADCO’s product handling experts are here to help. Like all ADCO machines, our wrap around sleevers are constructed in stainless steel and are available in both standard and washdown configurations.

  • Stainless steel construction
  • Mechanical or servo drive system
  • Fully automatic, continuous motion design
  • Multi-head rotary sleeve feeder
  • Fully adjustable with screw adjustments and digital readouts for size changes
  • Horizontal powered magazine
  • Nordson® ProBlue FLEX hot melt glue system
  • Allen-Bradley® PLC control system with color touch screen HMI
  • Category 3 safety system with a fully-interlocked barrier guard package
  • PackML programming
  • Many options available upon request
  • Stainless steel construction and sanitary design improves cleanability and eliminates corrosion
  • High speed capability maximizes productivity and reduces machinery requirements
  • Flexible and adaptable design protects your investment as products change
  • Smooth continuous motion design and rotary feeder improve speed and efficiency
  • Easy to load powered magazine reduces operator fatigue and increases run time
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Frozen entrees
  • Single pack trays, cups and bowls
  • Fruit cup multi-packs
  • Aseptic beverage multi-packs
  • Beverage bottle multi-packs
  • Consumer products
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 9 9 25 229
Width of Opening .75 4 20 100
Carton Opening 4 12 100 305
Utilities
Electrical 230/460 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption 3 CFM @ 95 PSI
  • Washdown construction
  • Servo or Mechanical control
  • Glue or lock style closure
  • Product stacking infeed's including standard and top layer inverted
  • Single or double lane configurations
  • Nordson MOD melt on demand hotmelt glue system
  • Extended length carton magazine
  • PLC & HMI upgrades
