WAE

Wrap Around Sleever

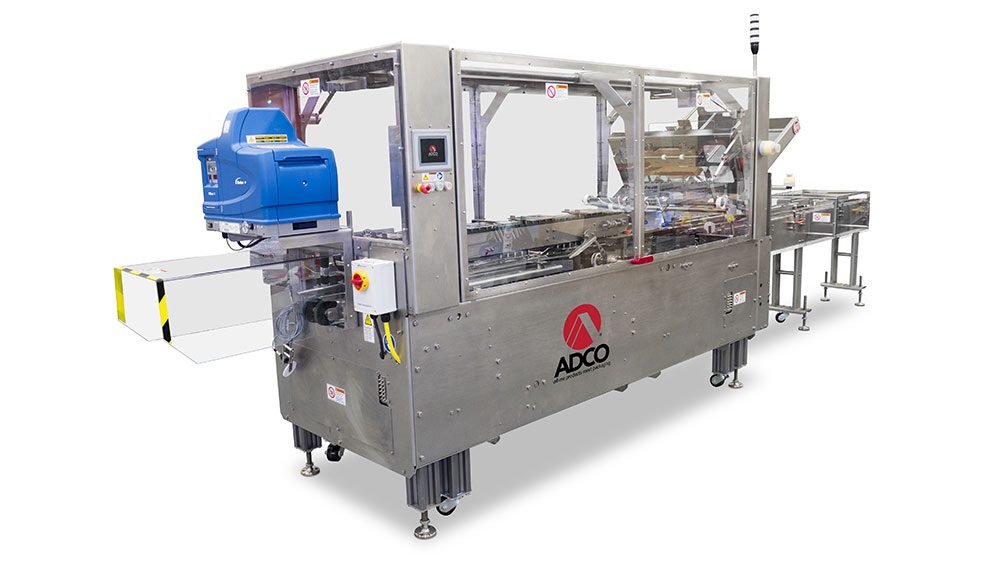

The innovative and affordable ADCO model WAE wrap around sleever is the perfect choice for your low speed sleeving operation.

For speeds up to 60 sleeves/minute, the WAE features a compact frame, an easy-to-load inclined magazine and a smooth reciprocating sleeve feeder. The continuous motion WAE was designed with your needs in mind; when it comes to flexibility and value, the WAE really delivers. Configured to run single count rectangular trays automatically, it can be optionally configured with a flighted infeed conveyor system for hand loading stacked trays. Like all ADCO machines, the WAE is constructed in stainless steel and is available in both standard and various washdown configurations.

Request a Quote

Features

Stainless steel construction
Compact, 9’ frame with leveling feet and casters
Easy to load, inclined sleeve magazine
Overhead conveyor
Bottom squaring chain
Powered takeaway belts
Nordson® ProBlue FLEX hot melt glue system
Allen-Bradley® PLC control system with touch screen HMI
Category 3 safety system with a fully-interlocked barrier guard package
Many options available upon request

Benefits

Stainless steel construction improves cleanability and eliminates corrosion
Overhead conveyor with bottom squaring chain ensures proper sealing
Flexible and adaptable design protects your investment as products change
Easy to load magazine reduces operator fatigue and increases run time
Advanced guard design keeps operators safe and maximizes maintenance access

Applications

Frozen entrees
Ready meals
Consumer products

Specs

Carton Dimensions Carton Sleever

Carton Size Range
Dimensions	Min(in)	Max(in)	Min(mm)	Max(mm)
Length of Opening	3	10	75	250
Width of Opening	3	9	75	250
Carton Opening	1	4	25	100

Utilities
Electrical	230/460 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption	10 CFM @ 95 PSI

Options

Washdown construction
High-speed WAE-90 version comes equipped with servo powered timing screws, 4′ horizontal magazine, and 2-head rotary feeder to offer speeds up to 90 sleeves/minute
Nordson MOD melt on demand hotmelt glue system
Downstream back-up detection
Marking and coding systems
PLC & HMI upgrades

Contact Us for a Quote on this Machine
