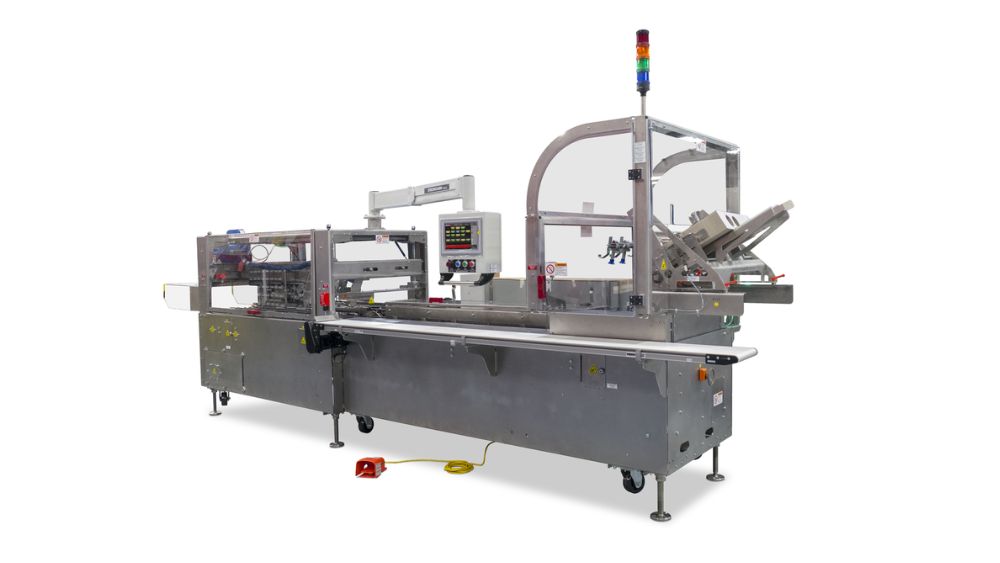

WSU-HL

Wrap Up Hand Load Sleever

The innovative and affordable ADCO model WSU-HL wrap up sleever is the economical hand load choice for multi-piece sleeving.

For speeds up to 100 sleeves/minute, the WSU-HL features a compact frame, an easy-to-load inclined magazine, and a smooth 2-head rotary sleeve feeder. The continuous motion WSU-HL was designed with your needs in mind. Configured to run multi-count products that are too complicated to automate with a conventional sleever, the WSU-HL presents a unique solution. Like all ADCO machines, the WSU-HL is constructed in stainless steel and is available in both standard and various washdown configurations.

Request a Quote

Features

Stainless steel construction
Compact, 14’ frame with leveling feet and casters
Easy to load, inclined sleeve magazine
Positive flap control chains in the closing area
Powered takeaway belts
Nordson® ProBlue FLEX hot melt glue system
Allen-Bradley® PLC control system
Category 3 safety system with a fully-interlocked barrier guard package
Many options available upon request

Benefits

Stainless steel construction improves cleanability and eliminates corrosion
Ergonomic 72″ long hand load table
Flexible and adaptable design protects your investment as products change
Easy to load magazine reduces operator fatigue and increases run time
Advanced guard design keeps operators safe and maximizes maintenance access

Applications

Frozen entrees
Dairy
Beverage
Baked goods

Specs

Carton Dimensions Carton Sleever

Carton Size Range
Dimensions	Min(in)	Max(in)	Min(mm)	Max(mm)
Length of Opening	4.0	9.5	100	240
Width of Opening	3.0	9.0	75	203
Carton Opening	1.0	4.0	25	100

Utilities
Electrical	230/460 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption	10 CFM @ 95 PSI

Options

Washdown construction
Horizontal powered magazine
Extended hand load area is available
Automate with an ADCO robotic product loading system
Nordson MOD melt on demand hotmelt glue system
Downstream back-up detection
Marking and coding systems
PLC & HMI upgrades
