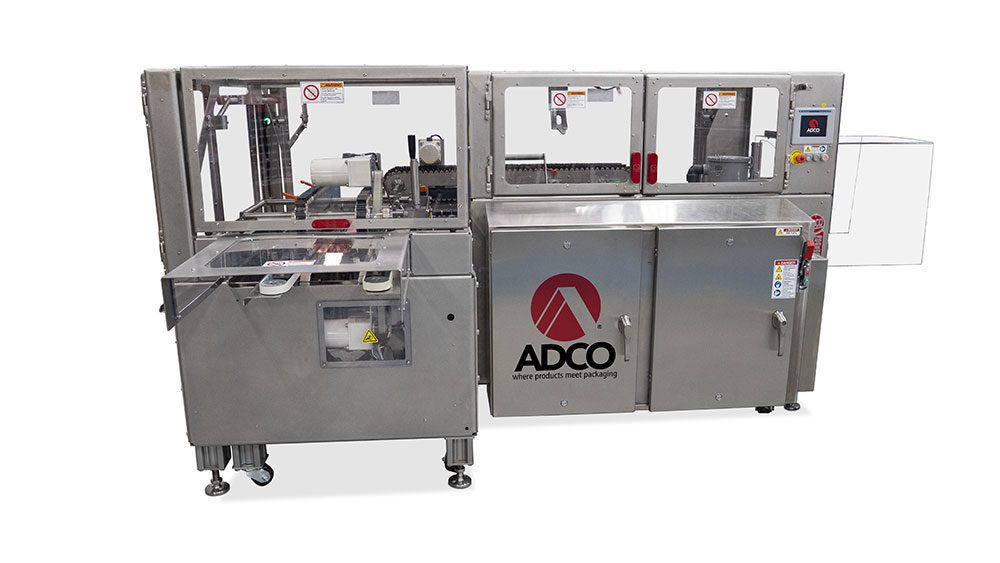

RAC-120
Compact Lugless Right Angle Carton Closer
Featuring flexible design and a compact footprint, the ADCO RAC-120 high speed tri-seal carton closer was designed with your needs in mind.
With its precision servo-powered 90-degree transfer, the RAC-120 compact right angle carton closer can seal a wide variety of carton shapes and sizes at speeds up to 120 cycles per minute. ADCO’s time-tested lugged carton transfer system with powered overhead and flexible grippers maintain positive control of the carton all the way through the closing and sealing operation. This reliable and simple to operate tri-seal carton closer is ideal for the most demanding production environments. Like all ADCO machines, the RAC-120 is constructed in stainless steel and is available in both standard and washdown configurations.
- Stainless steel construction
- Speeds up to 120 cartons per minute
- Accepts cartons randomly or back-to-back
- Servo-driven on demand 90-degree transfer system
- Compact 8.5’ frame with leveling feet and casters
- Lugged carton transfer system
- Nordson® ProBlue FLEX hot melt glue system
- Allen-Bradley® PLC control package with touch screen HMI
- Category 3 safety system with a fully-interlocked barrier guard package
- Many options available upon request
- Stainless steel construction improves cleanability and eliminates corrosion
- Vacuum infeed meters cartons into the machine and helps square cartons before closing
- Positive, on-demand lugged carton transfer maximizes control and reliability
- Overhead belt and flexible gripper design improves oversize carton handling
- Swing away overhead conveyors to quickly clear jams
- Fast, “no-tool” changeover improves productivity and reduces downtime
- Large carton size range protects your investment as products change
- Advanced guard design keeps operators safe and maximizes maintenance access
- Snack foods
- Ice cream novelties
- Flow-wrapped products
- Frozen foods
- Ready meals
- Dairy products
- Baked good
Carton / Case Size Range| Dimensions | Min(in) | Max(in) | Min(mm) | Max(mm) |
| Length of Opening | 4 | 14 | 100 | 355 |
| Width of Opening | 3 | 12 | 75 | 305 |
| Carton Depth | 1 | 5 | 25 | 125 |
| Electrical | 230/460 VAC, 3-Phase with ground (PE), 60 Hz, 30A |
| Air Consumption | 2 CFM @ 70 PSI |
- Washdown construction
- Transfer Left or Right orientations available
- Cover supply on Left or Right
- Downstream back-up detection
- Open flap detect & reject system
- Marking and coding systems
- PLC & HMI upgrades
- Integrate with an ADCO or 3rd party supplied upstream product loading system
- Integrate with an ADCO supplied upstream carton former
