Lugless Inline Closer

Inline Carton Closer - SLC

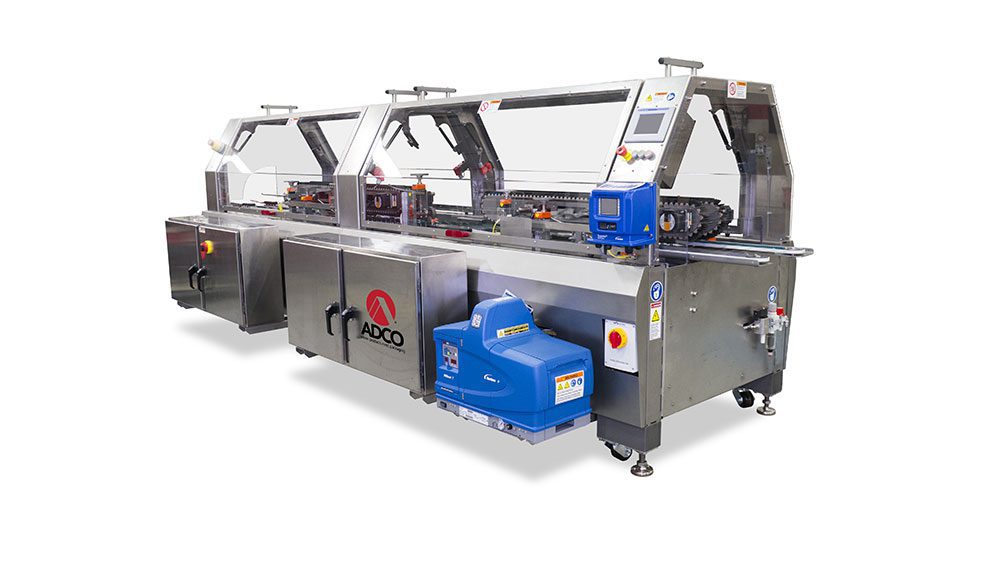

Looking for a compact, high-speed inline tri-seal carton closing solution? If so, look no further than the ADCO model SLC high-speed inline carton closer.

Designed to handle a wide variety of carton shapes and sizes at speeds up to 200 cartons per minute, the versatile SLC automatic carton sealer gets the job done, fast! Featuring a variable speed drive system, precision servo-controlled turning chains and no-tool changeover, the SLC packs a lot of features into its small frame. Plus, with its overhead belt and flexible gripper design, handling bulging and oversize cartons is a breeze. This reliable and simple to operate carton closer is ideal for the most demanding and cost-conscious production environments. Like all ADCO machines, the SLC is available in both standard and washdown configurations.

  • Stainless steel construction
  • 90 degree carton turn section with on-demand servo controlled turning chains
  • Cover right or cover left orientation
  • No-tool changeover with digital readouts
  • Variable speed drive system
  • Accepts cartons randomly or back-to-back
  • Compact frame with leveling feet and casters
  • Nordson® ProBlue FLEX hot melt glue system
  • Allen-Bradley® PLC control package with touch screen HMI
  • Category 3 safety system with fully-interlocked barrier guard package
  • Many options available upon request
  • Stainless steel construction improves cleanability and eliminates corrosion
  • Vacuum infeed meters cartons into the machine and helps square cartons before closing
  • Positive, on-demand lugged carton transfer maximizes control and reliability
  • Overhead belt and flexible gripper design improves oversize carton handling
  • Swing away overhead conveyors to quickly clear jams
  • Fast and easy “no-tool” changeover improves productivity and reduces downtime
  • Large carton size and style range which protects your investment as products change
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Snack foods
  • Ice cream novelties
  • Flow-wrapped products
  • Frozen foods
  • Ready meals
  • Dairy products
  • Baked goods
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 4 11.75 100 300
Width of Opening 3 11.75 75 300
Carton Depth 1 5 25 125
Electrical 230/460 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption 2 CFM @ 70 PSI
  • Washdown construction
  • Transfer Counter-clockwise or clockwise orientations available
  • Cover supply on Left or Right
  • Downstream back-up detection
  • Open flap detect & reject system
  • Marking and coding systems
  • PLC & HMI upgrades
  • Integrate with an ADCO or 3rd party supplied upstream product loading system
  • Integrate with an ADCO supplied upstream carton former
