Inline Top-Seal Carton Closer

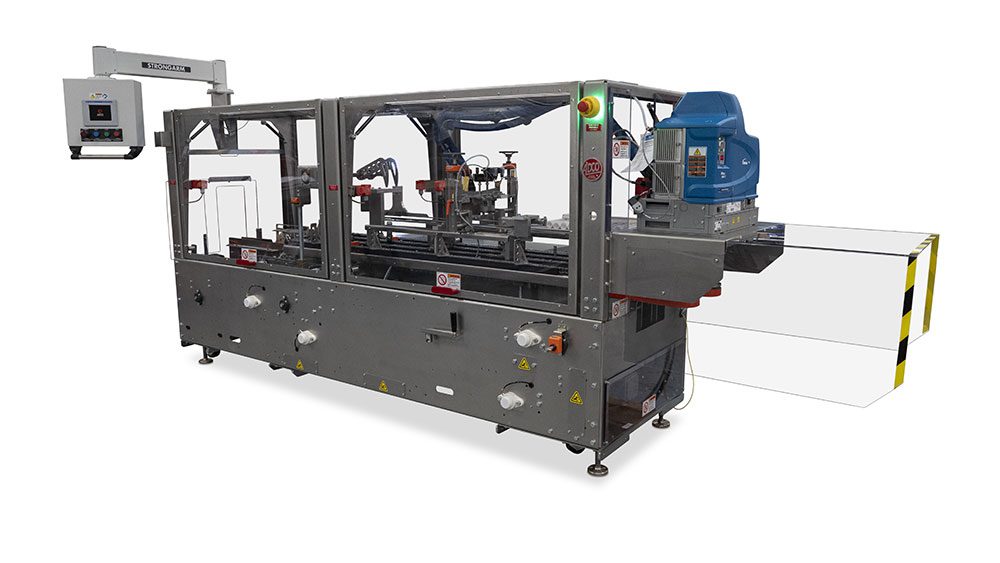

Inline Top-Seal Carton Closer - 18TS

Featuring positive, continuous motion lugged carton transfer design, the ADCO 18TS is a perfect solution for inline sealing of single flap top load, RSC and tablock tuck cartons.

With its simple design and ability to handle a wide variety of carton shapes and sizes at variable speeds up to 80 cartons per minute, the versatile 18TS is packed with value. Cartons arrive back-to-back and are indexed into the 18TS by a dual-lugged mechanical flag indexer. ADCO’s side lugged transfer design maintains control of the carton all the way through the closing and sealing operation. This reliable and simple to operate inline top-seal carton closer is ideal for the most demanding and cost-conscious production environments. Like all ADCO machines, the 18TS is available in both standard and washdown configurations.

  • Stainless steel construction
  • Mechanical dual flag indexer
  • Side lugged carton transfer system
  • Dust/minor flap tucking system
  • Powered discharge side belts
  • Compact frame with leveling feet and casters
  • Nordson® ProBlue FLEX hot melt glue system
  • Allen-Bradley® control package
  • Fully-interlocked barrier guard package
  • Many options available upon request
  • Stainless steel construction improves cleanability and eliminates corrosion
  • Positive, continuous motion lugged carton transfer maximizes control and reliability
  • Lugged overhead chain design maximizes carton squaring and product quality
  • Fast, easy changeover improves productivity and reduces downtime
  • Large carton size and style range which protects your investment as products change
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Flow-wrapped products
  • Ice cream novelties
  • Frozen foods
  • Snack foods
  • Baked goods
  • Household products
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 4 12 100 305
Width of Opening 4 10 100 255
Carton Depth 1.5 6 40 150
Electrical 230/460 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption 2-3 CFM @ 65-70 PSI
  • Washdown construction
  • Glue or tablock tuck style closure
  • Downstream back-up detection
  • Open flap detect & reject system
  • PLC & HMI upgrades
  • Marking and coding systems
  • Integrate with an ADCO or 3rd party supplied product loading system
  • Integrate with an ADCO supplied upstream carton former or bottom sealer
