Multi-Axis Robotic Carton Loader

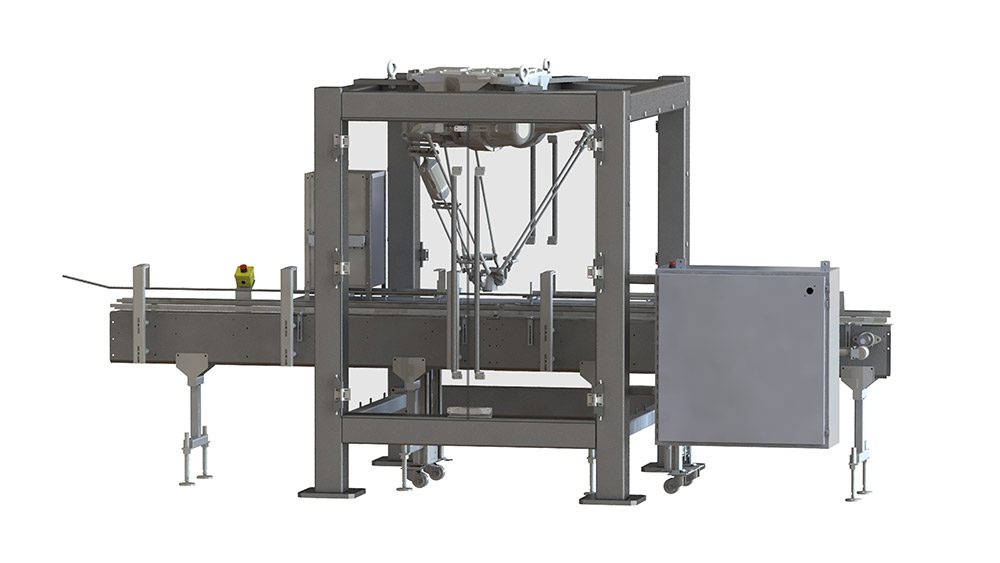

Multi-Axis Robotic Carton Loader - RCL 4x-6x

Designed for maximum flexibility, performance and reliability, the ADCO RCL-4x (4-axis) and RCL-6x (6-axis) robotic carton loaders are ideal for the most demanding production environments.

The RCL family of robotic carton loaders feature end-of-arm tool designs that are based on ADCO’s decades of complex product handling and carton loading experience and can be configured to handle many types of products at rates up to 700 products per minute. Available in single or multiple robot configurations, ADCO’s RCL carton loaders provide packagers with unparalleled speed, adaptability, and investment protection. Both the RCL-4x (4-axis) and the RCL-6x (6-axis) feature stainless steel construction and are available in either standard or food grade configurations.

  • Capable of speeds up to 700 products per minute, depending on the application
  • Sanitary design with easy access for changeover and cleanup
  • Multiple infeed options including flat belt and servo-driven racetrack designs
  • Random product infeed with integrated irVision
  • Allen-Bradley® PLC control package with touch screen HMI interface
  • Category 3 safety system with fully-interlocked barrier guard package
  • Many options available upon request
  • Stainless steel construction improves cleanability and eliminates corrosion
  • Precision robotic motion ensures gentle product handling and quality output
  • Unique FANUC parallel-link design maximizes speed and acceleration
  • Higher speed and acceleration reduces number of robots needed for an application, condensing overall footprint
  • Six-axis design (RCL-6x) enables product feeding from the sides of a work zone, increasing the useable workspace
  • Fast, easy tool change reduces downtime and improves productivity
  • Snack foods
  • Baked goods in trays
  • Flow-wrapped products
  • Frozen meats
  • Dairy
  • Personal care
  • Cosmetics
  • Pharmaceutical
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
  Varies by application
Electrical 230/460 VAC, 3-Phase with ground (PE), 60 Hz
Air Consumption Consult Factory
  • Washdown construction
  • Special material handling
  • End of arm tooling (EOAT) options
  • Product collation
