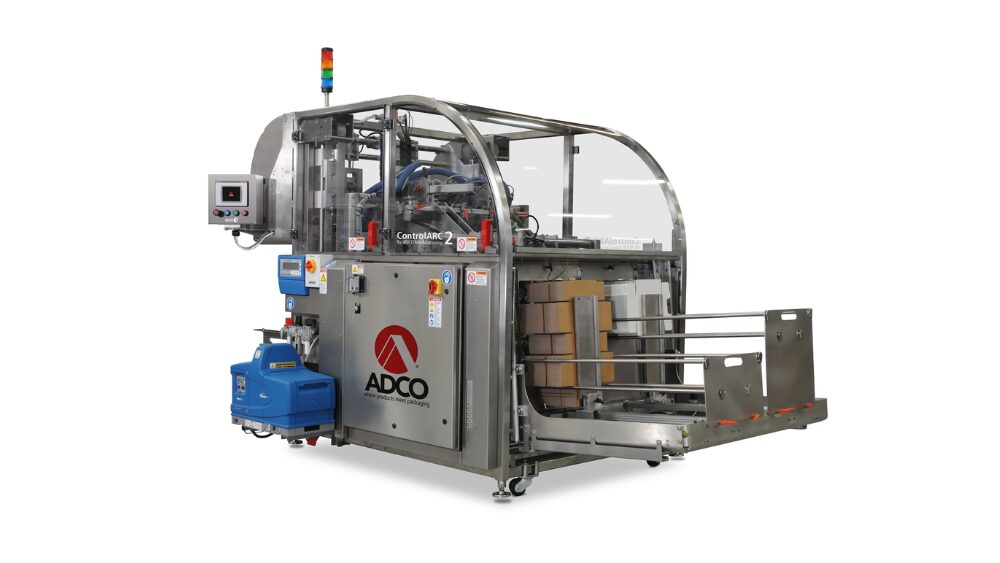

ControlARC2 CF1200

Top Load Carton Forming Machine

Featuring ADCO’s innovative ControlARC2® design, the CF-600 and CF-1200 top load tray formers were conceived from the ground up to deliver excellent performance and flexibility along with extraordinary ergonomics and reliability.

ADCO’s ControlARC2® design allows these machines to be fitted with a low-level, easy-to-load magazine to help minimize worker fatigue and provide maximum control and flexibility when handling material variations. Delivering class-leading carton erecting performance at speeds up to 90 cartons per minute, this top load carton forming machine is a great choice for many applications including Retail Ready and Shelf Ready packaging. Fast changeover, simple operation, and clean design make the CF family of tray formers ideal for the most demanding production environments. Like all ADCO machines, the CF-600 (single head) and the CF-1200 (double head) are constructed in stainless steel and are available in both standard and washdown configurations.

  • Stainless steel construction
  • ControlARC2® shuttle carton feed system with pinch rollers
  • Ergonomic, low-load carton magazine
  • Multi-axis variable speed drive system
  • Available with up to two (2) forming heads (CF-1200s)
  • Compact frame with leveling feet and casters
  • Unformed carton sensing system
  • Nordson® ProBlue FLEX hot melt glue system with pattern control (when glue is specified)
  • Allen-Bradley® PLC control package with touch screen HMI interface
  • Category 3 safety system with fully-interlocked barrier guard package
  • Many options available upon request
  • Stainless steel construction improves cleanability and eliminates corrosion
  • ControlARC2® design provides extraordinary ergonomics and maximizes control
  • Fast, easy changeover reduces downtime and increases productivity
  • Large carton size range and style range protects your investment as products change
  • Easy integration to other ADCO top load machinery saves time and money
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Snack foods
  • Baked goods in trays
  • Flow-wrapped products
  • Frozen meats
  • Dairy
  • Household products
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
  Varies by application
Electrical 230 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption 10 CFM @ 70 PSI
  • Single head (600) or double head (1200) versions available
  • Washdown construction
  • Glue or stripper lock capability
  • Nordson MOD melt on demand hotmelt glue system
  • Pneumatic or air cylinder eject
  • Low carton magazine warning light
  • Flighted or non-flighted packing conveyor
  • Electronic packing conveyor interface
  • PLC & HMI upgrades
  • Integrate with an ADCO or 3rd party supplied product loading system
  • Integrate with an ADCO supplied carton closer
