16B

Tri-Seal Carton Closer - Lugged

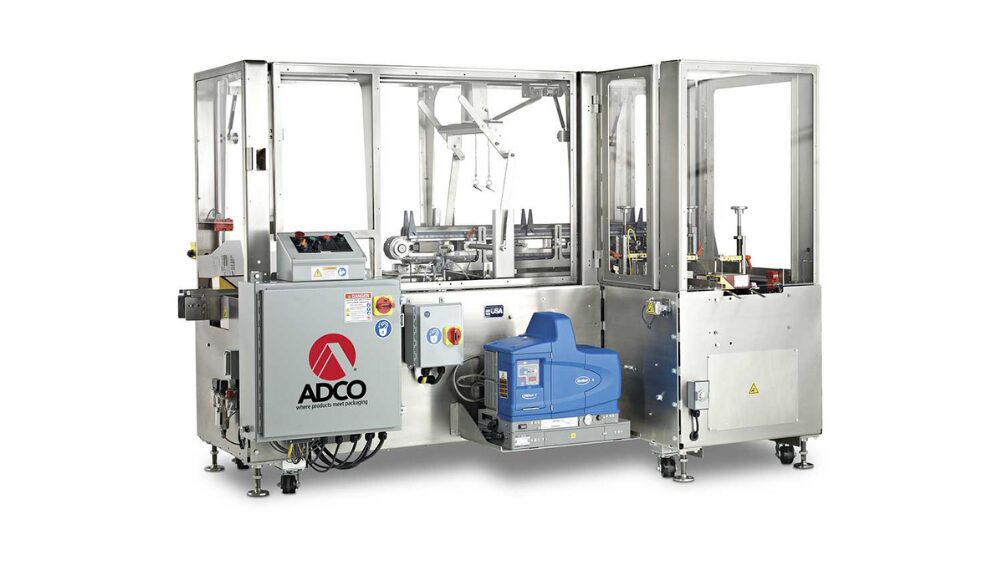

Tri-Seal Carton Closer - 16B

Featuring positive, continuous motion lugged carton transfer design, the new ADCO 16B is the right answer for your tri-seal carton closing machine needs.

When it comes to quality, flexibility, footprint, and value, the 16B hits the mark. Designed to seal a wide variety of carton shapes and sizes, the affordable 16B accepts cartons back-to-back at speeds up to 80 cartons per minute. No complex positioning systems needed here. ADCO’s time-tested lugged transfer design keeps positive control of the carton all the way through the closing and sealing operation. This reliable and simple to operate mechanical (no servos!) tri-seal carton closer is ideal for the most demanding and cost-conscious production environments. Like all ADCO machines, the 16B is constructed in stainless steel and is available in both standard and washdown configurations.

  • Stainless steel construction
  • Compact frame with leveling feet and casters
  • Lugged carton transfer system
  • Cover left/right orientation
  • Powered discharge side belts
  • Nordson® ProBlue FLEX hot melt glue system
  • Allen-Bradley® control package
  • Category 3 safety system with a fully-interlocked barrier guard package
  • Many options available upon request
  • Stainless steel construction improves cleanability and eliminates corrosion
  • Positive, continuous motion lugged carton transfer maximizes control and reliability
  • Fast, easy changeover improves productivity and reduces downtime
  • Large carton size range protects your investment as products change
  • Advanced guard design keeps operators safe and maximizes maintenance access
  • Baked Goods
  • Ice cream novelties
  • Flow-wrapped products
  • Dairy products
  • Snack foods
  • Consumer products
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 4 12 101 305
Width of Opening 4 10 101 254
Carton Depth 1 4 25 101
Utilities
Electrical 230 VAC, 3-Phase with ground (PE), 60 Hz, 30A
Air Consumption 2 CFM @ 70 PSI
  • Transfer Left or Right orientations available
  • Cover supply on Left or Right
  • Washdown Construction
  • Economy glue flaps
  • Downstream back-up detection
  • Marking and coding systems
  • PLC & HMI upgrades
  • Integrate with an ADCO or 3rd party supplied  upstream product loading system
  • Integrate with an ADCO supplied upstream carton former
