Tri-Seal Carton Closer

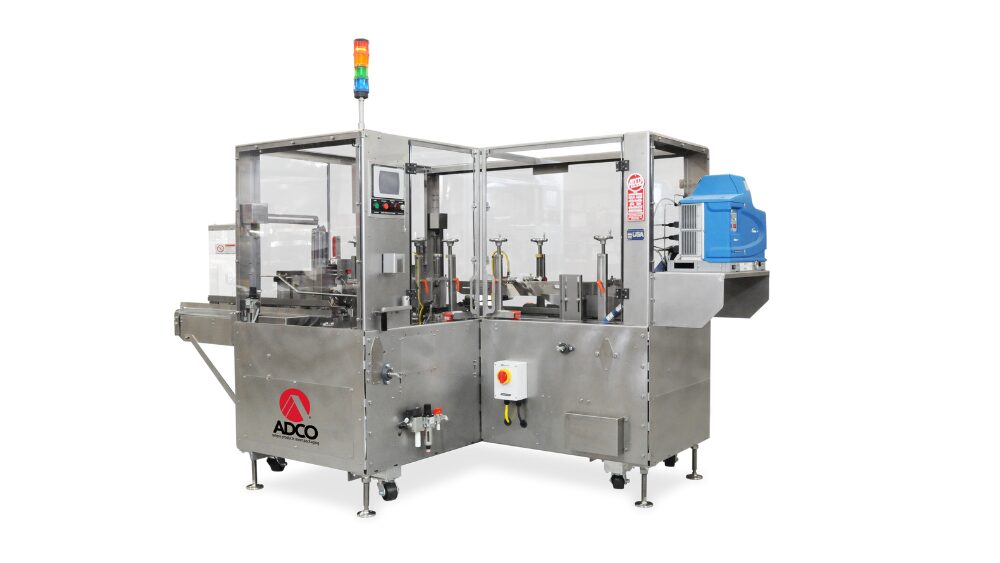

Tri-Seal Carton Closer -- ZTC-30

Designed to provide maximum carton closing performance and reliability at an affordable price, the compact ADCO Model ZTC-30 Tri-Seal Carton Closer is ideal for the most demanding and cost-conscious production environments.

Designed to close oversize tri-seal cartons at speeds up to 30 cartons per minute, the ZTC-30 features a three foot infeed conveyor with a built-in metering system to ensure proper spacing between packages as they enter the machine. A reliable walking beam indexing system pushes each package into the sealing area where glue is applied to the sidewalls and the cover is plowed. The package is then pushed onto a lugged conveyor where the front flap is glued and sealed. Like all ADCO machines, the ZTC- 30 features stainless steel construction and is available in either standard or washdown configurations.

  • 3' long low-friction infeed conveyor
  • Air actuated carton metering system
  • 90-degree lugged transfer for front flap sealing
  • Compact footprint
  • 2-station walking beam indexing system with servo drive
  • Air actuated side flap sealing system
  • Allen-Bradley® PLC control package with touch screen HMI interface
  • Category 3 safety system with fully-interlocked barrier guard package
  • Optimized for sealing ‘oversize’ club store style tri-seal cartons
  • Durable yet economical design for low-speed sealing applications saves money
  • Stainless steel construction improves cleanability and eliminates corrosion
  • Fast, easy changeover reduces downtime and improves productivity
  • Compact footprint saves space and eases integration into tight areas
  • Snack foods
  • Baked goods in trays
  • Flow-wrapped products
  • Frozen meats
  • Dairy
  • Personal care
  • Cosmetics
Carton Size Range
Dimensions Min(in) Max(in) Min(mm) Max(mm)
Length of Opening 4 12 100 305
Width of Opening 4 10 104 254
Carton Depth 1 4 25 101
Electrical 20A @ 230VAC
Air Consumption 5 CFM @ 80PSI
  • Washdown construction
  • Transfer/Cover Left or Right orientations available
  • Downstream back-up detection
  • Open flap detect
  • Marking and coding systems
  • PLC & HMI upgrades
  • Integrate with an ADCO or 3rd party supplied upstream product loading system
  • Integrate with an ADCO supplied upstream carton former
